Mule-Arch-201 Study Guide: Latest [Jun 25, 2026] Realistic Verified Mule-Arch-201 Dumps

Mule-Arch-201 Questions & Practice Test are Available On-Demand

NEW QUESTION # 23
A Platform Architect inherits a legacy monolithic SOAP-based web service that performs a number of tasks, including showing all policies belonging to a client. The service connects to two back-end systems - a life-insurance administration system and a general-insurance administration system - and then queries for insurance policy information within each system, aggregates the results, and presents a SOAP-based response to a user interface (UI).
The architect wants to break up the monolithic web service to follow API-led conventions.
Which part of the service should be put into the process layer?

  • A. Presenting the SOAP-based response to the UI
  • B. Combining the insurance policy information from the administration systems
  • C. Authenticating and maintaining connections to each of the back-end administration systems
  • D. Querying the data from the administration systems

Answer: B

Explanation:
In the API-led connectivity approach, each layer (System, Process, and Experience) has a distinct purpose:
System APIs: These APIs connect directly to backend systems to expose and unlock data in a standardized way.
Process APIs: These are responsible for orchestrating and processing data across different systems, combining information where needed.
Experience APIs: These are designed for specific user interfaces or applications, often transforming data formats to fit the needs of each consumer application.
Why Option A is Correct:
Process APIs are designed to combine data from multiple systems, which aligns with the function of aggregating policy information from both the life and general insurance systems. This aggregation logic would ideally reside in the Process layer, separating data retrieval from data orchestration.
Moving this functionality to the Process layer enables reusability and modularity, as other Experience APIs or services could also leverage the combined policy data if needed.
of Incorrect Options:
Option B (Presenting the SOAP-based response) would be managed by the Experience layer, as this layer adapts data formats for specific interfaces.
Option C (Authenticating and maintaining backend connections) would typically be handled within the System layer, where backend integration and security handling occurs.
Option D (Querying data) is the function of System APIs, which access the backend systems directly and expose the raw data without additional processing.
Reference
For further details on API-led architecture and the roles of each layer, refer to MuleSoft's documentation on API-led connectivity and API layers.


NEW QUESTION # 24
The asset version 2.0.0 of the Order API is successfully published in Exchange and configured in API Manager with the Autodiscovery API ID correctly linked to the API implementation, A new GET method is added to the existing API specification, and after updates, the asset version of the Order API is 2.0.1, What happens to the Autodiscovery API ID when the new asset version is updated in API Manager?

  • A. The API ID changes, but no changes are needed to the API implementation for the new asset version in the API Autediscovery global element because the API ID is automatically updated
  • B. The APL ID changes, so the API implementation must be updated with the latest API ID for the new asset version in the API Autodiscovery global element
  • C. The APL ID does not change, but the API implementation must be updated in the AP] Autodiscovery global element to indicate the new asset version 2.0.4
  • D. The APLID does not change, so no changes to the APT implementation are needed for the new asset version in the API Autodiscovery global element

Answer: D

Explanation:
Understanding API Autodiscovery in MuleSoft:
API Autodiscovery links an API implementation in Anypoint Platform with its configuration in API Manager. This is controlled by the API ID which is set in the API Autodiscovery element in the Mule application.
The API ID remains consistent across minor updates to the API asset version in Exchange (e.g., from 2.0.0 to 2.0.1) as long as it is the same API.
Effect of Asset Version Update on API Autodiscovery:
When the asset version is updated (e.g., from 2.0.0 to 2.0.1), the API ID remains the same. Therefore, no changes are needed in the Autodiscovery configuration within the Mule application. The Autodiscovery will continue to link the API implementation to the latest version in API Manager.
Evaluating the Options:
Option A: Incorrect, as the API ID does not automatically change with minor asset version updates.
Option B: Incorrect, as the API ID remains the same, so no update is needed in the API implementation.
Option C (Correct Answer): The API ID does not change, so no changes are necessary in the API implementation for the new asset version.
Option D: Incorrect, as there is no need to update the API implementation in the Autodiscovery global element for minor version changes.
Conclusion:
Option C is the correct answer, as the API ID remains unchanged with minor version updates, and no changes are needed in the API Autodiscovery configuration.
Refer to MuleSoft documentation on API Autodiscovery and version management for more details.


NEW QUESTION # 25
What is true about where an API policy is defined in Anypoint Platform and how it is then applied to API instances?

  • A. The API policy Is defined In Runtime Manager as part of the API deployment to a Mule runtime, and then ONLY applied to the specific API Instance
  • B. The API policy is defined in API Manager, and then applied to ALL API instances in the specified environment
  • C. The API policy Is defined in API Manager and then automatically applied to ALL API instances
  • D. The API policy Is defined In API Manager for a specific API Instance, and then ONLY applied to the specific API instance

Answer: D

Explanation:
Correct Answe r: The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance.
*****************************************
>> Once our API specifications are ready and published to Exchange, we need to visit API Manager and register an API instance for each API.
>> API Manager is the place where management of API aspects takes place like addressing NFRs by enforcing policies on them.
>> We can create multiple instances for a same API and manage them differently for different purposes.
>> One instance can have a set of API policies applied and another instance of same API can have different set of policies applied for some other purpose.
>> These APIs and their instances are defined PER environment basis. So, one need to manage them seperately in each environment.
>> We can ensure that same configuration of API instances (SLAs, Policies etc..) gets promoted when promoting to higher environments using platform feature. But this is optional only. Still one can change them per environment basis if they have to.
>> Runtime Manager is the place to manage API Implementations and their Mule Runtimes but NOT APIs itself. Though API policies gets executed in Mule Runtimes, We CANNOT enforce API policies in Runtime Manager. We would need to do that via API Manager only for a cherry picked instance in an environment.
So, based on these facts, right statement in the given choices is - "The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance".


NEW QUESTION # 26
An organization wants to make sure only known partners can invoke the organization's APIs. To achieve this security goal, the organization wants to enforce a Client ID Enforcement policy in API Manager so that only registered partner applications can invoke the organization's APIs. In what type of API implementation does MuleSoft recommend adding an API proxy to enforce the Client ID Enforcement policy, rather than embedding the policy directly in the application's JVM?

  • A. A Mule 3 or Mule 4 application modified with custom Java code
  • B. A Mule 3 application using APIkit
  • C. A Mule 4 application with an API specification
  • D. A Non-Mule application

Answer: D

Explanation:
Correct Answe r: A Non-Mule application
*****************************************
>> All type of Mule applications (Mule 3/ Mule 4/ with APIkit/ with Custom Java Code etc) running on Mule Runtimes support the Embedded Policy Enforcement on them.
>> The only option that cannot have or does not support embedded policy enforcement and must have API Proxy is for Non-Mule Applications.
So, Non-Mule application is the right answer.


NEW QUESTION # 27
A large organization with an experienced central IT department is getting started using MuleSoft. There is a project to connect a siloed back-end system to a new Customer Relationship Management (CRM) system. The Center for Enablement is coaching them to use API-led connectivity.
What action would support the creation of an application network using API-led connectivity?

  • A. Invite the business analyst to create a business process model to specify the canonical data model between the two systems
  • B. To expedite this project, central IT should extend the CRM system and back-end systems to connect to one another using built in integration interfaces
  • C. Determine if the new CRM system supports the creation of custom: REST APIs, establishes 4 private network with CloudHub, and supports GAuth 2.0 authentication
  • D. Create a System API to unlock the data on the back-end system using a REST API

Answer: D

Explanation:
For an organization starting with API-led connectivity to integrate a siloed back-end system with a new CRM, the following approach aligns with best practices and MuleSoft's Center for Enablement (C4E) guidance:
API-led Connectivity: This model organizes APIs into distinct layers (System, Process, and Experience) to improve reusability, modularity, and manageability.
System APIs are used to expose and unlock data from core systems (such as back-end applications or databases).
Process APIs orchestrate data across multiple systems and transform it as needed.
Experience APIs format the data specifically for consumption by applications or devices, such as the CRM in this case.
Step to Support Application Network:
Create a System API for the back-end system. This API should expose the necessary data to support integration with the CRM.
By creating a System API with a RESTful interface, data can be accessed in a standardized way, making it easier to integrate with other systems and supporting future scalability.
Why Option D is Correct:
Creating a System API aligns with the principle of API-led connectivity, ensuring that data is exposed in a reusable manner. This API can then be orchestrated by Process APIs as needed to meet CRM requirements and can easily be extended to other applications.
of Incorrect Options:
Option A (creating a business process model) does not directly enable connectivity or expose back-end data through APIs.
Option B is unnecessary at this stage; assessing CRM capabilities like OAuth 2.0 support is not directly related to creating the application network via System APIs.
Option C contradicts API-led best practices by suggesting a point-to-point integration, which API-led connectivity seeks to avoid due to its lack of flexibility and scalability.
Reference
Refer to MuleSoft's API-led Connectivity resources for a detailed framework on building scalable integration layers using System, Process, and Experience APIs.


NEW QUESTION # 28
An API experiences a high rate of client requests (TPS) vwth small message paytoads. How can usage limits be imposed on the API based on the type of client application?

  • A. Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type
  • B. Use a cross-origin resource sharing (CORS) policy to limit resource sharing between client applications, configured by the client application type
  • C. Use a spike control policy that limits the number of requests for each client application type
  • D. Use a rate limiting policy and a client ID enforcement policy, each configured by the client application type

Answer: A

Explanation:
Correct Answe r: Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type.
*****************************************
>> SLA tiers will come into play whenever any limits to be imposed on APIs based on client type


NEW QUESTION # 29

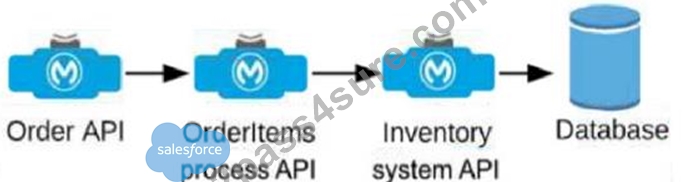

An Order API triggers a sequence of other API calls to look up details of an order's items in a back-end inventory database. The Order API calls the OrderItems process API, which calls the Inventory system API. The Inventory system API performs database operations in the back-end inventory database.
The network connection between the Inventory system API and the database is known to be unreliable and hang at unpredictable times.
Where should a two-second timeout be configured in the API processing sequence so that the Order API never waits more than two seconds for a response from the Orderltems process API?

  • A. In the Order API implementation
  • B. In the Inventory system API implementation
  • C. In the Orderltems process API implementation
  • D. In the inventory database

Answer: C

Explanation:
Understanding the API Flow and Timeout Requirement:
The Order API initiates a call to the OrderItems process API, which in turn calls the Inventory system API to fetch details from the inventory database.
The requirement specifies that the Order API should not wait more than two seconds for a response from the OrderItems process API, even if there are delays further down the chain (between Inventory system API and the database).
Choosing the Appropriate Timeout Location:
Setting the timeout at the OrderItems process API level ensures that if the Inventory system API takes longer than two seconds to respond, the OrderItems process API will terminate the request and send a timeout response back to the Order API. This prevents the Order API from waiting indefinitely due to the unreliable connection to the database.
If the timeout were set in the Inventory system API or database, it would not help the Order API directly, as the OrderItems process API would still be waiting for a response.
Detailed Analysis of Each Option:
Option A (Correct Answer): Setting the timeout in the OrderItems process API allows it to control how long it waits for a response from the Inventory system API. If the Inventory system API does not respond within two seconds, the OrderItems process API can terminate the call and return a timeout response to the Order API, meeting the requirement.
Option B: Setting the timeout in the Order API would not limit the wait time at the OrderItems process API level, meaning the OrderItems process API could still wait indefinitely for the Inventory system API, leading to a longer delay.
Option C: Setting the timeout in the Inventory system API only affects the connection to the database and does not influence how long the OrderItems process API waits for the Inventory system API's response.
Option D: Setting a timeout in the database is not feasible in this context since database timeouts are typically configured for database operations and would not directly control the API response times in the overall API chain.
Conclusion:
Option A is the best choice, as it ensures that the OrderItems process API does not hold the Order API longer than the required two seconds, even if the downstream connection to the database hangs. This configuration aligns with MuleSoft best practices for setting timeouts in API orchestration to manage dependencies and prevent delays across a chain of API calls.
For additional information on timeout settings, refer to MuleSoft documentation on handling timeouts and API orchestration best practices.


NEW QUESTION # 30
How can the application of a rate limiting API policy be accurately reflected in the RAML definition of an API?

  • A. By refining the response definitions by adding the out-of-the-box Anypoint Platform rate-limit-enforcement securityScheme with description, type, and example
  • B. By refining the resource definitions by adding a description of the rate limiting policy behavior
  • C. By refining the response definitions by adding the x-ratelimit-* response headers with description, type, and example
  • D. By refining the request definitions by adding a remaining Requests query parameter with description, type, and example

Answer: C

Explanation:
Correct Answe r: By refining the response definitions by adding the x-ratelimit-* response headers with description, type, and example
*****************************************
Reference:
https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling#response-headers
https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers


NEW QUESTION # 31
Which statement is true about Spike Control policy and Rate Limiting policy?

  • A. To protect Experience APIs by limiting resource consumption, Rate Limiting policy must be applied
  • B. All requests are rejected after the limit is reached in Rate Limiting policy, whereas the requests are queued in Spike Control policy after the limit is reached
  • C. In order to apply Rate Limiting and Spike Control policies, a contract to bind client application and API is needed for both
  • D. In a clustered environment, the Rate Limiting.and Spike Control policies are applied to each node in the cluster

Answer: D

Explanation:
Understanding Spike Control and Rate Limiting Policies:
Spike Control Policy: Limits the number of requests processed by the API in a short time to handle sudden bursts of traffic. It does not queue requests but rejects any request that exceeds the allowed burst rate.
Rate Limiting Policy: Sets a limit on the number of requests that an API can handle within a given timeframe. Once the limit is reached, additional requests are rejected.
Evaluating the Options:
Option A: Incorrect. In both Spike Control and Rate Limiting policies, requests are rejected once the limit is reached. Spike Control does not queue requests; it only controls the burst rate by rejecting excessive requests.
Option B (Correct Answer): In a clustered environment, each node independently enforces the Rate Limiting and Spike Control policies, meaning that the limits apply to each node separately. This ensures that each node can control its own resource usage independently within the cluster.
Option C: This is partially correct, as Rate Limiting is often used to protect Experience APIs, but Spike Control could also be useful in limiting resource consumption under high burst conditions.
Option D: Incorrect. Although a contract is required to enforce client-specific policies, Rate Limiting and Spike Control do not require a contract to function for general traffic control.
Conclusion:
Option B is the correct answer because, in a clustered environment, Rate Limiting and Spike Control policies apply separately to each node, helping each instance to manage its own load.
For more information, refer to MuleSoft's documentation on applying Rate Limiting and Spike Control policies in a clustered environment.


NEW QUESTION # 32

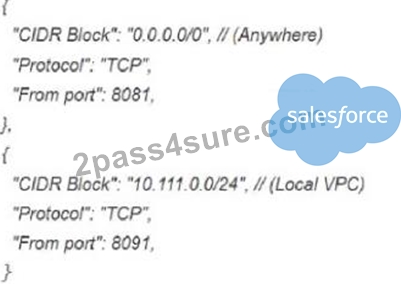

4 Production environment is running on a dedicated Virtual Private Cloud (VPC) on CloudHub 1,0, and the security team guidelines clearly state no traffic on HTTP.
Which two options support these security guidelines?
Choose 2 answers

  • A. Add the entry in the VPC firewall rule.
  • B. Create a custom policy to apply to outgoing and incoming HTTP requests to control access to a configured API endpoint
  • C. Remove the entry from the VPC firewall rule
  • D. Configure the HTTPS protocol in HTTP listener in the Mule application
  • E. Configure the IP Blocklist policy to control access to a configured API endpoint from either a single IP address or a range of IP addresses.

Answer: C,D

Explanation:
Security Guidelines Overview:
The production environment is hosted on a dedicated Virtual Private Cloud (VPC) on CloudHub 1.0, with a specific requirement from the security team that no traffic should occur over HTTP. This implies that only secure HTTPS traffic should be permitted, and HTTP access (port 8081, the default HTTP port in Mule applications) should be disabled.
Evaluating the Options:
Option A (Correct Answer): Configuring the HTTPS protocol in the HTTP listener in the Mule application ensures that all traffic is encrypted and occurs over HTTPS (port 8092 by default for HTTPS on Mule applications). This directly aligns with the security guideline to prevent unencrypted HTTP traffic.
Option B: Creating a custom policy for incoming and outgoing HTTP requests could provide some control over access, but it does not enforce the use of HTTPS exclusively. This option does not disable HTTP traffic and, therefore, does not meet the guideline effectively.
Option C (Correct Answer): Removing the entry for HTTP (port 8081) in the VPC firewall rule ensures that HTTP traffic is completely blocked at the firewall level. This prevents any HTTP requests from reaching the application, adding a layer of security that complies with the guidelines.
Option D: The IP Blocklist policy controls access based on IP addresses but does not enforce the use of HTTPS. This policy does not address the specific requirement of preventing HTTP traffic.
Option E: Adding a firewall rule entry for HTTP (port 8081) would enable HTTP traffic, which directly contradicts the security guidelines. Therefore, this option should be avoided.
Conclusion:
Option A and Option C are the correct choices. Configuring the HTTPS protocol in the Mule application's HTTP listener ensures that only HTTPS traffic is allowed, and removing the firewall rule for HTTP (port 8081) blocks any HTTP traffic from reaching the application. Together, these options enforce secure traffic as required by the security guidelines.
Refer to MuleSoft documentation on configuring HTTP listeners and managing VPC firewall rules for further details on implementing these security controls.


NEW QUESTION # 33
An operations team is analyzing the effort needed to set up monitoring of their application network. They are looking at which API invocation metrics can be used to identify and predict trouble without having to write custom scripts or install additional analytics software or tools.
Which type of metrics can satisfy this goal of directly identifying and predicting failures?

  • A. The ROI from each APT invocation
  • B. The effectiveness of the application network based on the level of reuse
  • C. The number and types of past API invocations across the application network
  • D. The number and types of API policy violations per day

Answer: D

Explanation:
To monitor an application network and predict issues without custom scripts, policy violation metrics are critical. They provide insights into potential problems by tracking instances where API usage does not conform to defined policies. Here's why this approach is suitable:
Predictive Monitoring:
Tracking API policy violations (such as rate limits or spike controls being hit) can indicate surges in traffic or misuse, which may lead to throttling or service degradation if not addressed.
By monitoring these violations, teams can proactively adjust limits or optimize API handling to prevent actual failures.
No Custom Scripting Needed:
Policy violation metrics are available within MuleSoft's Anypoint Monitoring, meaning there's no need to implement custom solutions or external tools to gather and interpret this data.
of Incorrect Options:
Option B (effectiveness based on reuse) does not directly predict failures.
Option C (past invocation counts) offers historical usage data but does not inherently identify issues.
Option D (ROI from API invocation) is a business metric and does not provide technical insights for failure prediction.
Reference
For more details on leveraging policy violation metrics for proactive monitoring, refer to MuleSoft documentation on Anypoint Monitoring.


NEW QUESTION # 34
What is typically NOT a function of the APIs created within the framework called API-led connectivity?

  • A. They reduce the dependency on the underlying backend systems by helping unlock data from backend systems In a reusable and consumable way.
  • B. They can compose data from various sources and combine them with orchestration logic to create higher level value.
  • C. They provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
  • D. They allow for innovation at the user Interface level by consuming the underlying assets without being aware of how data Is being extracted from backend systems.

Answer: C

Explanation:
Correct Answe r: They provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
*****************************************
In API-led connectivity,
>> Experience APIs - allow for innovation at the user interface level by consuming the underlying assets without being aware of how data is being extracted from backend systems.
>> Process APIs - compose data from various sources and combine them with orchestration logic to create higher level value
>> System APIs - reduce the dependency on the underlying backend systems by helping unlock data from backend systems in a reusable and consumable way.
However, they NEVER promise that they provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
https://dzone.com/articles/api-led-connectivity-with-mule


NEW QUESTION # 35
The Line of Business (LoB) of an eCommerce company is requesting a process that sends automated notifications via email every time a new order is processed through the customer's mobile application or through the internal company's web application. In the future, multiple notification channels may be added: for example, text messages and push notifications.
What is the most effective API-led connectivity approach for the scenario described above?

  • A. Create Experience APIs for both the web application and mobile application.
    Create a Process API ta orchestrate, retrieve the email template from e database, and send the email using the Anypoint Connector for Email.
    \
  • B. Create one Experience API for the web application and one for the mobile application, Create a Process API to orchestrate, retrieve the email template from a database, and send the email using the Anypoint Connector for Email.
  • C. Create one Experience API for the web application and one for the mobile application.
    Create a Process API to orchestrate and retrieve the email template from = database.
    Create a System API that sends the email using the Anypoint Connector for Email.
    Create one Experience API for the web application and one for the mobile application.
    Create a Process API to orchestrate and retrieve the email template from = database.
    Create a System API that sends the email using the Anypoint Connector for Email.
  • D. Create Experience APIs for both the web application and mobile application.
    (Create 3 Process API to orchestrate and retrieve the email template from 2 databese.
    Create a System API that sends the email using the Anypoint Connector for Email.

Answer: C

Explanation:
In this scenario, the best approach to satisfy the API-led connectivity principles and support future scalability is:
Experience APIs:
Create separate Experience APIs for the web application and the mobile application. This allows each application to have an optimized interface, supporting different needs and potential differences in request/response structures or security configurations.
Process API:
A single Process API can be used to orchestrate the workflow, including retrieving the email template from a database and preparing the email content. By centralizing this logic in the Process layer, we can ensure it is reusable and easily adaptable for different notification channels in the future.
System API:
A System API specifically designed for sending emails (using the Anypoint Connector for Email) abstracts the email-sending functionality from the business logic. This approach ensures that the email-sending function is reusable and scalable, and it can easily be extended or modified if other notification channels (like SMS or push notifications) are added later.
Why Option A is Correct:
This structure aligns with API-led connectivity principles by separating concerns across Experience, Process, and System layers. It provides flexibility for future notification channels and isolates each layer's responsibility, making it easier to maintain and scale.
of Incorrect Options:
Option B lacks a separate System API for sending emails, which goes against the principle of isolating back-end functionality in System APIs.
Option C similarly lacks a dedicated System API, reducing flexibility and reusability.
Option D suggests creating multiple Process APIs for database retrieval, which adds unnecessary complexity and does not adhere to the single-orchestration principle typically followed in API-led design.
Reference
For further guidance on API-led connectivity and the responsibilities of each API layer, refer to MuleSoft's documentation on API-led architecture and design best practices.


NEW QUESTION # 36
What are the major benefits of MuleSoft proposed IT Operating Model?

  • A. 1. Decrease the IT delivery gap
    2. Meet various business demands without increasing the IT capacity
    3. Focus on creation of reusable assets first. Upon finishing creation of all the possible assets then inform the LOBs in the organization to start using them
  • B. 1. Decrease the IT delivery gap
    2. Meet various business demands without increasing the IT capacity
    3. Make consumption of assets at the rate of production
  • C. 1. Decrease the IT delivery gap
    2. Meet various business demands by increasing the IT capacity and forming various IT departments
    3. Make consumption of assets at the rate of production

Answer: B

Explanation:
Correct Answe r:
1. Decrease the IT delivery gap
2. Meet various business demands without increasing the IT capacity
3. Make consumption of assets at the rate of production.
*****************************************


NEW QUESTION # 37
Once an API Implementation is ready and the API is registered on API Manager, who should request the access to the API on Anypoint Exchange?

  • A. API Consumer
  • B. Both
  • C. API Client
  • D. None

Answer: A

Explanation:
Correct Answe r: API Consumer
*****************************************
>> API clients are piece of code or programs that use the client credentials of API consumer but does not directly interact with Anypoint Exchange to get the access
>> API consumer is the one who should get registered and request access to API and then API client needs to use those client credentials to hit the APIs So, API consumer is the one who needs to request access on the API from Anypoint Exchange


NEW QUESTION # 38
A Mule application exposes an HTTPS endpoint and is deployed to the CloudHub Shared Worker Cloud. All traffic to that Mule application must stay inside the AWS VPC.
To what TCP port do API invocations to that Mule application need to be sent?

  • A. 0
  • B. 1
  • C. 2
  • D. 3

Answer: C

Explanation:
Correct Answe r: 8082
*****************************************
>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL VPC respectively.
>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.
>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB
>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB So, API invocations should be sent to port 8082 when calling this HTTPS based app.
Reference:
https://docs.mulesoft.com/runtime-manager/cloudhub-networking-guide
https://help.mulesoft.com/s/article/Configure-Cloudhub-Application-to-Send-a-HTTPS-Request-Directly-to-Another-Cloudhub-Application
https://help.mulesoft.com/s/question/0D52T00004mXXULSA4/multiple-http-listerners-on-cloudhub-one-with-port-9090


NEW QUESTION # 39
......

Valid Mule-Arch-201 Exam Dumps Ensure you a HIGH SCORE: https://www.2pass4sure.com/Salesforce-MuleSoft/Mule-Arch-201-actual-exam-braindumps.html

Pass Mule-Arch-201 Exam with Latest Questions: https://drive.google.com/open?id=1-ozOzK-kukMzmmffVFIv1eEZEBISlvJE
